Sometimes we need to check that everything is working fine with SSD. In order to check that, first connect to esxi via ssh

~ # esxcli storage vflash cache list
vfc-1540989573-server.xxxxxxxx-000001

# esxcli storage vflash cache stats
Usage: esxcli storage vflash cache stats {cmd} [cmd options]

Available Commands:
get                   Get vflash cache statistics.
reset                 Reset vflash cache statistics.



In this case vfc-1540989573-server.xxxxxxxx-000001  is the virual machine id

Now we’ll use:
# esxcli storage vflash cache stats

# esxcli storage vflash cache stats get
Error: Missing required parameter -c|–cache-name

Usage: esxcli storage vflash cache stats get [cmd options]

Description:
get                   Get vflash cache statistics.

Cmd options:
-c|–cache-name=<str> The vflash cache file name (required)
-m|–module-name=<str>
The vflash module name

Now it’s time to run the complete  command to get all information related with Flash cache, so here the result.:

~ # esxcli storage vflash cache stats get -m vfc -c vfc-1540989573-server.xxxxxxxx-000001
Read:
Cache hit rate (as a percentage): 6
Total cache I/Os: 8068
Mean cache I/O latency (in microseconds): 288
Mean disk I/O latency (in microseconds): 20807
Total I/Os: 146717
Mean IOPS: 101
Max observed IOPS: 101
Mean number of KB per I/O: 2365
Max observed number of KB per I/O: 2365
Mean I/O latency (in microseconds): 9862
Max observed I/O latency (in microseconds): 9862
Evict:
Last I/O operation time (in microseconds): 0
Number of I/O blocks in last operation: 0
Mean blocks per I/O operation: 0
Total failed SSD I/Os: 0
Total failed disk I/Os: 0
Mean number of cache blocks in use: 265818

Once you know everything is working fine, Total I/Os: 146717 is the evidence that SSD is receiving I/O’s interactions.

The second and probably the most important thing you have to do is to get the specific block size for the virtual machine.

~ # vscsiStats -l

~ # vscsiStats -l
Virtual Machine worldGroupID: 495475, Virtual Machine Display Name: server.hostingred.com, Virtual Machine Config File: /vmfs/volumes/53479e2c-387086b8/server.hostingred.com/server.hostingred.com.vmx, {
Virtual SCSI Disk handleID: 8241 (scsi0:0)
Virtual SCSI Disk handleID: 8242 (scsi0:1)
Virtual SCSI Disk handleID: 8243 (scsi0:2)
}

And run the following  on a busy day at least 2 or 3 hours:

~ # vscsiStats -s -w 495475
vscsiStats: Starting Vscsi stats collection for worldGroup 495475, handleID 8241 (scsi0:0)
Success.
vscsiStats: Starting Vscsi stats collection for worldGroup 495475, handleID 8242 (scsi0:1)
Success.
vscsiStats: Starting Vscsi stats collection for worldGroup 495475, handleID 8243 (scsi0:2)
Success.

Where 495475 is the worldGroupID, so you have to check your own id, or ids in your infrastructure.

At the end, run :

~ # vscsiStats -p ioLength
Histogram: IO lengths of commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8241 (scsi0:0) {
min : 4096
max : 524288
mean : 8980
count : 366944
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 218406 (<= 4096) 0 (<= 8191) 47401 (<= 8192) 40948 (<= 16383) 52524 (<= 16384) 3251 (<= 32768) 1532 (<= 49152) 165 (<= 65535) 751 (<= 65536) 467 (<= 81920) 477 (<= 131072) 393 (<= 262144) 629 (<= 524288) 0 (> 524288)
}
}
Histogram: IO lengths of Read commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8241 (scsi0:0) {
min : 4096
max : 262144
mean : 22133
count : 2442
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 85 (<= 4096) 0 (<= 8191) 28 (<= 8192) 16 (<= 16383) 2018 (<= 16384) 144 (<= 32768) 36 (<= 49152) 2 (<= 65535) 27 (<= 65536) 15 (<= 81920) 45 (<= 131072) 26 (<= 262144) 0 (<= 524288) 0 (> 524288)
}
}
Histogram: IO lengths of Write commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8241 (scsi0:0) {
min : 4096
max : 524288
mean : 8892
count : 364502
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 218321 (<= 4096) 0 (<= 8191) 47373 (<= 8192) 40932 (<= 16383) 50506 (<= 16384) 3107 (<= 32768) 1496 (<= 49152) 163 (<= 65535) 724 (<= 65536) 452 (<= 81920) 432 (<= 131072) 367 (<= 262144) 629 (<= 524288) 0 (> 524288)
}
}
Histogram: IO lengths of commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8242 (scsi0:1) {
min : 4096
max : 524288
mean : 22127
count : 4659
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 2330 (<= 4096) 0 (<= 8191) 65 (<= 8192) 69 (<= 16383) 1612 (<= 16384) 224 (<= 32768) 80 (<= 49152) 5 (<= 65535) 40 (<= 65536) 29 (<= 81920) 37 (<= 131072) 101 (<= 262144) 67 (<= 524288) 0 (> 524288)
}
}
Histogram: IO lengths of Read commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8242 (scsi0:1) {
min : 4096
max : 262144
mean : 27578
count : 1232
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 18 (<= 4096) 0 (<= 8191) 3 (<= 8192) 2 (<= 16383) 1023 (<= 16384) 54 (<= 32768) 24 (<= 49152) 0 (<= 65535) 25 (<= 65536) 14 (<= 81920) 23 (<= 131072) 46 (<= 262144) 0 (<= 524288) 0 (> 524288)
}
}
Histogram: IO lengths of Write commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8242 (scsi0:1) {
min : 4096
max : 524288
mean : 20168
count : 3427
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 2312 (<= 4096) 0 (<= 8191) 62 (<= 8192) 67 (<= 16383) 589 (<= 16384) 170 (<= 32768) 56 (<= 49152) 5 (<= 65535) 15 (<= 65536) 15 (<= 81920) 14 (<= 131072) 55 (<= 262144) 67 (<= 524288) 0 (> 524288)
}
}
Histogram: IO lengths of commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8243 (scsi0:2) {
min : 4096
max : 524288
mean : 19174
count : 4374
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 1806 (<= 4096) 0 (<= 8191) 20 (<= 8192) 131 (<= 16383) 1851 (<= 16384) 220 (<= 32768) 128 (<= 49152) 34 (<= 65535) 37 (<= 65536) 36 (<= 81920) 50 (<= 131072) 31 (<= 262144) 30 (<= 524288) 0 (> 524288)
}
}
Histogram: IO lengths of Read commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8243 (scsi0:2) {
min : 4096
max : 262144
mean : 26251
count : 758
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 87 (<= 4096) 0 (<= 8191) 0 (<= 8192) 5 (<= 16383) 534 (<= 16384) ---ESTABLISH THIS VALUE 40 (<= 32768) 21 (<= 49152) 0 (<= 65535) 13 (<= 65536) 13 (<= 81920) 30 (<= 131072) 15 (<= 262144) 0 (<= 524288) 0 (> 524288)
}
}
Histogram: IO lengths of Write commands for virtual machine worldGroupID : 495475, virtual disk handleID : 8243 (scsi0:2) {
min : 4096
max : 524288
mean : 17691
count : 3616
{
0 (<= 512) 0 (<= 1024) 0 (<= 2048) 0 (<= 4095) 1719 (<= 4096) 0 (<= 8191) 20 (<= 8192) 126 (<= 16383) 1317 (<= 16384) 180 (<= 32768) 107 (<= 49152) 34 (<= 65535) 24 (<= 65536) 23 (<= 81920) 20 (<= 131072) 16 (<= 262144) 30 (<= 524288) 0 (> 524288)
}
}

Specifically you need to look for this section : IO lengths of Read commands

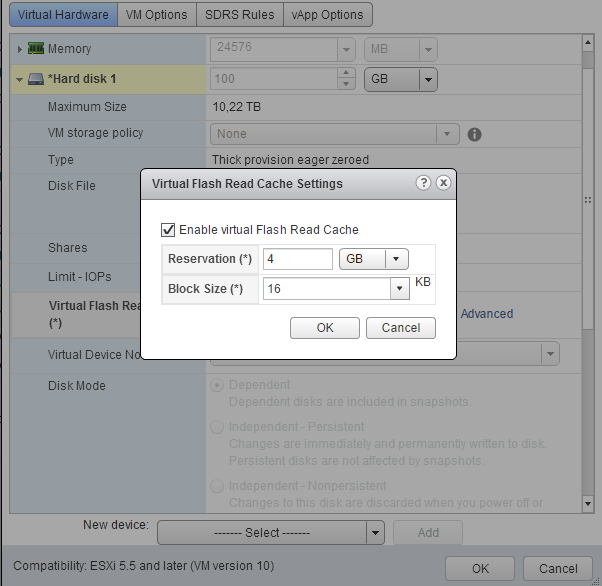

And now establish the value:
